Audio

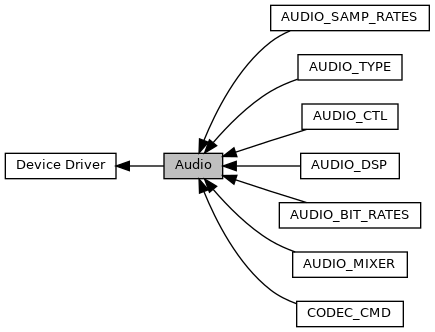

Collaboration diagram for Audio:

Modules
	AUDIO_CTL
	AUDIO_TYPE
	AUDIO_SAMP_RATES
	AUDIO_BIT_RATES
	AUDIO_DSP
	AUDIO_MIXER
	CODEC_CMD

Data Structures
struct	rt_audio_buf_info
struct	rt_audio_ops
struct	rt_audio_configure
struct	rt_audio_caps
struct	rt_audio_replay
struct	rt_audio_record
struct	rt_audio_device

Enumerations
enum	audio_stream

Functions
rt_err_t	rt_audio_register (struct rt_audio_device *audio, const char *name, rt_uint32_t flag, void *data)
void	rt_audio_tx_complete (struct rt_audio_device *audio)
void	rt_audio_rx_done (struct rt_audio_device *audio, rt_uint8_t *pbuf, rt_size_t len)
int	rt_audio_samplerate_to_speed (rt_uint32_t bitValue)

Detailed Description

Audio driver API.

Enumeration Type Documentation

audio_stream

enum audio_stream

Audio stream control command.

Function Documentation

rt_audio_register()

rt_err_t rt_audio_register	(	struct rt_audio_device *	audio,
		const char *	name,
		rt_uint32_t	flag,
		void *	data
	)

Register and initialize audio device.

Parameters

[in]	audio	pointer to audio deive
[in]	name	device name
[in]	flag	device flags
[in]	data	user data

Returns

error code, RT_EOK is successful otherwise means failure

rt_audio_tx_complete()

void rt_audio_tx_complete

(

struct rt_audio_device *

audio

)

Send a replay frame to the audio hardware device.

See _audio_send_replay_frame for details

Parameters

[in]

audio

pointer to audio device

rt_audio_rx_done()

void rt_audio_rx_done	(	struct rt_audio_device *	audio,
		rt_uint8_t *	pbuf,
		rt_size_t	len
	)

Receive recording from audio device.

Parameters

[in]	audio	pointer to audio device
[in]	pbuf	pointer ro data to be received
[in]	len	buffer size

rt_audio_samplerate_to_speed()

int rt_audio_samplerate_to_speed

(

rt_uint32_t

bitValue

)

Set audio sample rate.

Parameters

[in]

bitValue

audio sample rate, it can be one of value in AUDIO_SAMP_RATES

Returns

speed has been set
