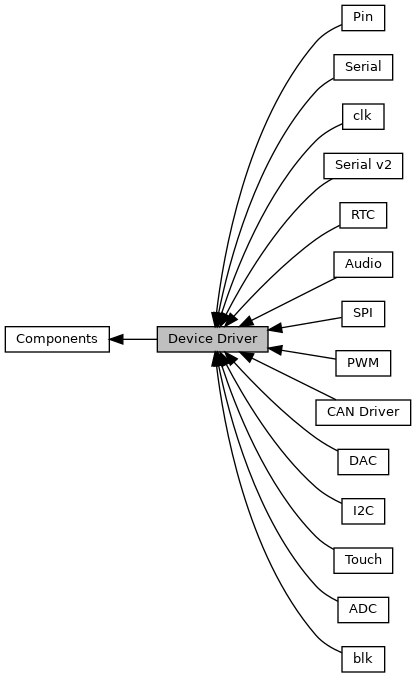

Collaboration diagram for Device Driver:

Modules
	ADC

	Clock

	DAC

	Audio

	CAN Driver

	I2C

	Pin

	PWM

	RTC

	Serial

	Serial v2

	SPI

	Touch

	blk

Data Structures
struct	rt_wqueue

struct	rt_device

struct	rt_device_notify

Macros
#define	RT_DEVICE_FLAG_DEACTIVATE 0x000

#define	RT_DEVICE_FLAG_RDONLY 0x001

#define	RT_DEVICE_FLAG_WRONLY 0x002

#define	RT_DEVICE_FLAG_RDWR 0x003

#define	RT_DEVICE_FLAG_REMOVABLE 0x004

#define	RT_DEVICE_FLAG_STANDALONE 0x008

#define	RT_DEVICE_FLAG_ACTIVATED 0x010

#define	RT_DEVICE_FLAG_SUSPENDED 0x020

#define	RT_DEVICE_FLAG_STREAM 0x040

#define	RT_DEVICE_FLAG_DYNAMIC 0x080

#define	RT_DEVICE_FLAG_INT_RX 0x100

#define	RT_DEVICE_FLAG_DMA_RX 0x200

#define	RT_DEVICE_FLAG_INT_TX 0x400

#define	RT_DEVICE_FLAG_DMA_TX 0x800

#define	RT_DEVICE_OFLAG_CLOSE 0x000

#define	RT_DEVICE_OFLAG_RDONLY 0x001

#define	RT_DEVICE_OFLAG_WRONLY 0x002

#define	RT_DEVICE_OFLAG_RDWR 0x003

#define	RT_DEVICE_OFLAG_OPEN 0x008

#define	RT_DEVICE_OFLAG_MASK 0xf0f

#define	RT_DEVICE_CTRL_RESUME 0x01

#define	RT_DEVICE_CTRL_SUSPEND 0x02

#define	RT_DEVICE_CTRL_CONFIG 0x03

#define	RT_DEVICE_CTRL_CLOSE 0x04

#define	RT_DEVICE_CTRL_NOTIFY_SET 0x05

#define	RT_DEVICE_CTRL_SET_INT 0x06

#define	RT_DEVICE_CTRL_CLR_INT 0x07

#define	RT_DEVICE_CTRL_GET_INT 0x08

#define	RT_DEVICE_CTRL_CONSOLE_OFLAG 0x09

#define	RT_DEVICE_CTRL_MASK 0x1f

#define	RT_DEVICE_CTRL_BASE(Type) ((RT_Device_Class_##Type + 1) * 0x100)

Enumerations
enum	rt_device_class_type { RT_Device_Class_Char = 0 , RT_Device_Class_Block , RT_Device_Class_NetIf , RT_Device_Class_MTD , RT_Device_Class_CAN , RT_Device_Class_RTC , RT_Device_Class_Sound , RT_Device_Class_Graphic , RT_Device_Class_I2CBUS , RT_Device_Class_USBDevice , RT_Device_Class_USBHost , RT_Device_Class_USBOTG , RT_Device_Class_SPIBUS , RT_Device_Class_SPIDevice , RT_Device_Class_SDIO , RT_Device_Class_PM , RT_Device_Class_Pipe , RT_Device_Class_Portal , RT_Device_Class_Timer , RT_Device_Class_Miscellaneous , RT_Device_Class_Sensor , RT_Device_Class_Touch , RT_Device_Class_PHY , RT_Device_Class_Security , RT_Device_Class_WLAN , RT_Device_Class_Pin , RT_Device_Class_ADC , RT_Device_Class_DAC , RT_Device_Class_WDT , RT_Device_Class_PWM , RT_Device_Class_Bus , RT_Device_Class_Unknown }

Detailed Description

device I/O subsystem

The Device System is designed as simple and minimum layer to help communication between applications and drivers.

The Device System provide five interfaces to driver:

open, open a device
close, close a device
read, read some data from a device
write, write some data to a device
control, send some control command to a device

Macro Definition Documentation

◆ RT_DEVICE_FLAG_DEACTIVATE

#define RT_DEVICE_FLAG_DEACTIVATE 0x000

device flags definitions device is not not initialized

◆ RT_DEVICE_FLAG_RDONLY

#define RT_DEVICE_FLAG_RDONLY 0x001

read only

◆ RT_DEVICE_FLAG_WRONLY

#define RT_DEVICE_FLAG_WRONLY 0x002

write only

◆ RT_DEVICE_FLAG_RDWR

#define RT_DEVICE_FLAG_RDWR 0x003

read and write

◆ RT_DEVICE_FLAG_REMOVABLE

#define RT_DEVICE_FLAG_REMOVABLE 0x004

removable device

◆ RT_DEVICE_FLAG_STANDALONE

#define RT_DEVICE_FLAG_STANDALONE 0x008

standalone device

◆ RT_DEVICE_FLAG_ACTIVATED

#define RT_DEVICE_FLAG_ACTIVATED 0x010

device is activated

◆ RT_DEVICE_FLAG_SUSPENDED

#define RT_DEVICE_FLAG_SUSPENDED 0x020

device is suspended

◆ RT_DEVICE_FLAG_STREAM

#define RT_DEVICE_FLAG_STREAM 0x040

stream mode

◆ RT_DEVICE_FLAG_DYNAMIC

#define RT_DEVICE_FLAG_DYNAMIC 0x080

device is determined when open()

◆ RT_DEVICE_FLAG_INT_RX

#define RT_DEVICE_FLAG_INT_RX 0x100

INT mode on Rx

◆ RT_DEVICE_FLAG_DMA_RX

#define RT_DEVICE_FLAG_DMA_RX 0x200

DMA mode on Rx

◆ RT_DEVICE_FLAG_INT_TX

#define RT_DEVICE_FLAG_INT_TX 0x400

INT mode on Tx

◆ RT_DEVICE_FLAG_DMA_TX

#define RT_DEVICE_FLAG_DMA_TX 0x800

DMA mode on Tx

◆ RT_DEVICE_OFLAG_CLOSE

#define RT_DEVICE_OFLAG_CLOSE 0x000

device is closed

◆ RT_DEVICE_OFLAG_RDONLY

#define RT_DEVICE_OFLAG_RDONLY 0x001

read only access

◆ RT_DEVICE_OFLAG_WRONLY

#define RT_DEVICE_OFLAG_WRONLY 0x002

write only access

◆ RT_DEVICE_OFLAG_RDWR

#define RT_DEVICE_OFLAG_RDWR 0x003

read and write

◆ RT_DEVICE_OFLAG_OPEN

#define RT_DEVICE_OFLAG_OPEN 0x008

device is opened

◆ RT_DEVICE_OFLAG_MASK

#define RT_DEVICE_OFLAG_MASK 0xf0f

mask of open flag

◆ RT_DEVICE_CTRL_RESUME

#define RT_DEVICE_CTRL_RESUME 0x01

general device commands 0x01 - 0x1F general device control commands 0x20 - 0x3F udevice control commands 0x40 - special device control commands resume device

◆ RT_DEVICE_CTRL_SUSPEND

#define RT_DEVICE_CTRL_SUSPEND 0x02

suspend device

◆ RT_DEVICE_CTRL_CONFIG

#define RT_DEVICE_CTRL_CONFIG 0x03

configure device

◆ RT_DEVICE_CTRL_CLOSE

#define RT_DEVICE_CTRL_CLOSE 0x04

close device

◆ RT_DEVICE_CTRL_NOTIFY_SET

#define RT_DEVICE_CTRL_NOTIFY_SET 0x05

set notify func

◆ RT_DEVICE_CTRL_SET_INT

#define RT_DEVICE_CTRL_SET_INT 0x06

set interrupt

◆ RT_DEVICE_CTRL_CLR_INT

#define RT_DEVICE_CTRL_CLR_INT 0x07

clear interrupt

◆ RT_DEVICE_CTRL_GET_INT

#define RT_DEVICE_CTRL_GET_INT 0x08

get interrupt status

◆ RT_DEVICE_CTRL_CONSOLE_OFLAG

#define RT_DEVICE_CTRL_CONSOLE_OFLAG 0x09

get console open flag

◆ RT_DEVICE_CTRL_MASK

#define RT_DEVICE_CTRL_MASK 0x1f

mask for contrl commands

◆ RT_DEVICE_CTRL_BASE

#define RT_DEVICE_CTRL_BASE ( Type ) ((RT_Device_Class_##Type + 1) * 0x100)

device control

Enumeration Type Documentation

◆ rt_device_class_type

enum rt_device_class_type

device (I/O) class type

Enumerator
RT_Device_Class_Char	character device
RT_Device_Class_Block	block device
RT_Device_Class_NetIf	net interface
RT_Device_Class_MTD	memory device
RT_Device_Class_CAN	CAN device
RT_Device_Class_RTC	RTC device
RT_Device_Class_Sound	Sound device
RT_Device_Class_Graphic	Graphic device
RT_Device_Class_I2CBUS	I2C bus device
RT_Device_Class_USBDevice	USB slave device
RT_Device_Class_USBHost	USB host bus
RT_Device_Class_USBOTG	USB OTG bus
RT_Device_Class_SPIBUS	SPI bus device
RT_Device_Class_SPIDevice	SPI device
RT_Device_Class_SDIO	SDIO bus device
RT_Device_Class_PM	PM pseudo device
RT_Device_Class_Pipe	Pipe device
RT_Device_Class_Portal	Portal device
RT_Device_Class_Timer	Timer device
RT_Device_Class_Miscellaneous	Miscellaneous device
RT_Device_Class_Sensor	Sensor device
RT_Device_Class_Touch	Touch device
RT_Device_Class_PHY	PHY device
RT_Device_Class_Security	Security device
RT_Device_Class_WLAN	WLAN device
RT_Device_Class_Pin	Pin device
RT_Device_Class_ADC	ADC device
RT_Device_Class_DAC	DAC device
RT_Device_Class_WDT	WDT device
RT_Device_Class_PWM	PWM device
RT_Device_Class_Bus	Bus device
RT_Device_Class_Unknown	unknown device
